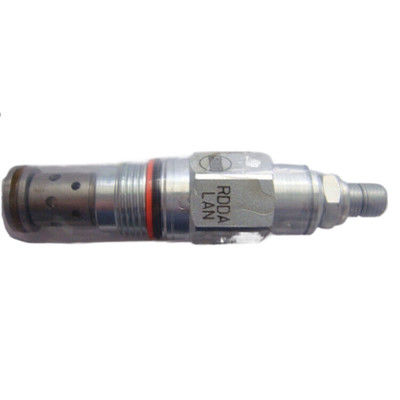

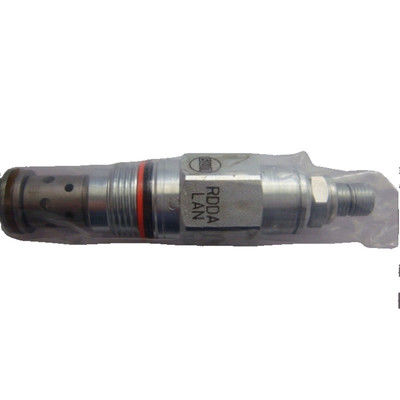

SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems

SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems
SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems

Large Image :  SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: RDDA-LAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems

Description
Brand: SUN Model: RDDA-LAN
Model Weight: 0.37 Lb. Locknut Torque: 80 - 90 Lbf In.
Locknut Hex Size: 9/16 In. Adjustment Screw Internal Hex Size: 5/32 In.
Valve Installation Torque: 30 - 35 Lbf Ft Valve Hex Size: 7/8 In.
Highlight:

Mechanical Hydraulic Valve

,

Hydraulic Relief Valve

,

Hydraulic Control Valves

SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems
Product Specifications
Attribute Value
Brand SUN
Model RDDA-LAN
Model Weight 0.37 lb.
Locknut Torque 80 - 90 lbf in.
Locknut Hex Size 9/16 in.
Adjustment Screw Internal Hex Size 5/32 in.
Valve Installation Torque 30 - 35 lbf ft
Valve Hex Size 7/8 in.
Product Description

Direct-acting relief cartridges are normally closed, pressure-limiting valves designed to protect hydraulic components from pressure transients. When inlet pressure (port 1) reaches the valve setting, it opens to tank (port 2), throttling flow to limit pressure rise.

Key Features
  • Smooth, quiet operation with essentially zero leakage
  • Dirt tolerant and immune to silting with fast response time
  • Physically and functionally interchangeable with other 2-port relief cartridges
  • Accepts maximum pressure at port 2 for cross port relief circuits
  • Insensitive to varying oil temperatures and contamination
  • Floating style construction minimizes internal part binding
Technical Specifications
Cavity T-10A
Series 1
Capacity 25 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Maximum Valve Leakage at Reseat 10 drops/min.
Response Time - Typical 2 ms
Reseat >90% of setting
SUN Overflow Valve RDDA-LAN For Petroleum-Based Fluids In Hydraulic Systems 0
