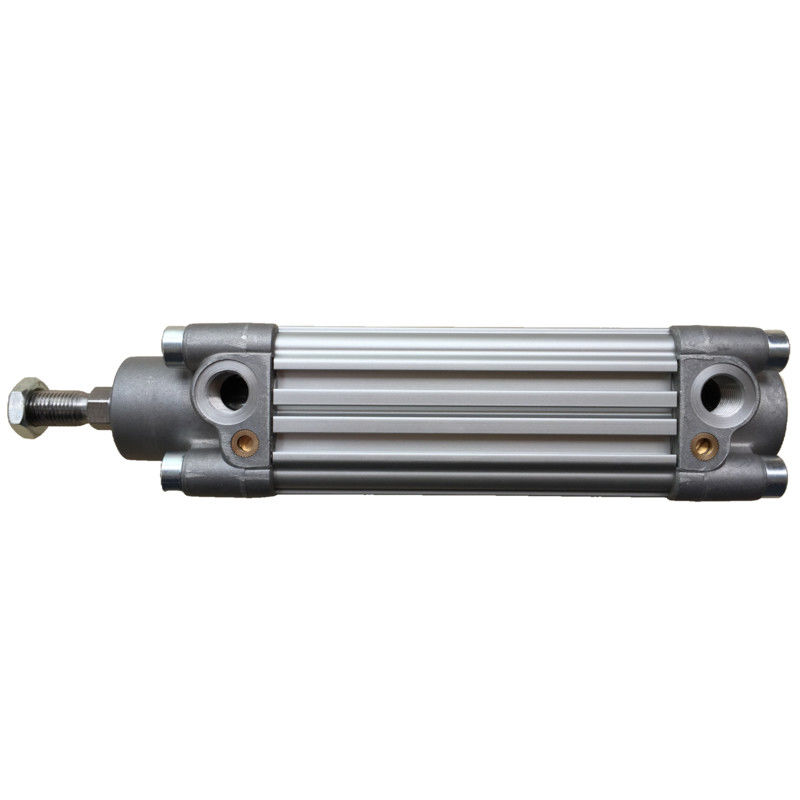

Steel AVENTICS Cylinder Ductile Iron 0822121003 High Reliability Safety 100% New

AVENTICS 0822121003 Cylinders & Actuators offer high reliability and safety with 100% new components.

• High reliability and durability: Manufactured with high-quality ductile iron and precision processes for low failure rates in long-term, high-intensity environments
• Automatic wear compensation: Excellent sealing performance (soft seal type) effectively prevents leakage
• Versatile configurations: Available in single-acting, double-acting, rodless, and compact types to suit various industrial applications
• Multiple installation options: Supports flanges, feet, and earrings to accommodate space constraints or special angle requirements
• Wide operating range: Functions in temperatures from 0℃ to 65℃ with compressed air containing 0-5mg/m³ oil content
• Energy efficient: Optimized gas circuit design reduces consumption with adjustable piston thrust (default 6.3bar)
• Easy maintenance: Compact, lightweight structure simplifies installation and reduces downtime

• Thoroughly clean pipelines before installation to prevent piston or seal blockage from welding slag or impurities
• For double-acting cylinders, separately test extension/retraction action sealing to detect one-way leakage

• Maintain compressed air oil content at 0-5mg/m³; install filters for particle-containing media
• Ensure proper heat dissipation in high-temperature environments (>60℃) to prevent seal degradation

• Regularly inspect seals using soapy water tests or pressure stability observation
• Release residual pressure after shutdown and apply anti-rust oil for internal protection
• Block ports for corrosion prevention during extended storage periods

• Limit solenoid valve switching frequency to ≤30 times/minute to prevent coil overheating
• Maintain stable air source pressure with appropriate lubrication to minimize piston friction
