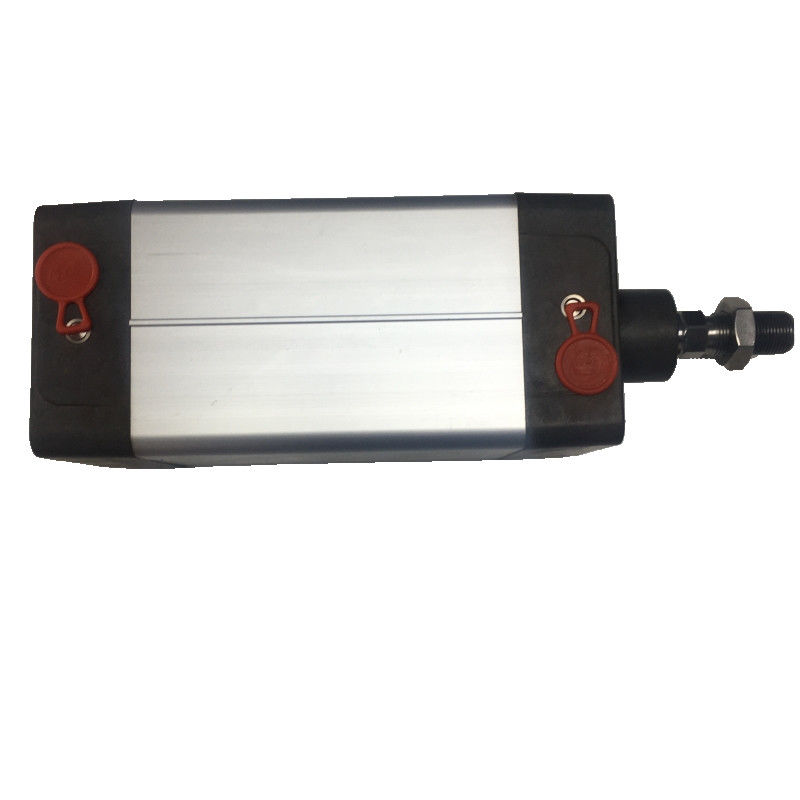

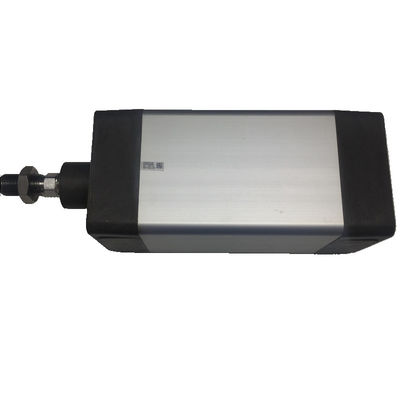

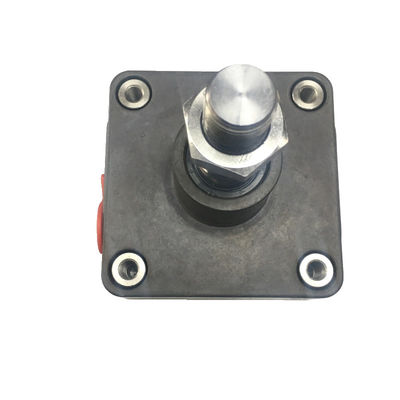

AVENTICS Oil Cylinder R480060085 Pneumatic Piston Rod Cylinder Safety New

• High durability: Constructed with polyurethane seals and propylene resin dust rings for stable operation up to 12 bar pressure
• Wide temperature range: Operates in environments from -25℃ to 80℃ with optional ATEX explosion-proof certification
• Precision control: ±0.1 mm repeatable positioning accuracy with elastic buffer design for smooth operation
• Modular design: ISO 6432 standard compact design with Easy-2-Combine integration capability
• Smart integration: Supports magnetic switches/sensors for real-time position feedback to PLC systems

• Double-acting cylinder design for bidirectional thrust output
• Standardized piston rod thread (M10×1.25) for precise stroke adjustment
• Low compressed air oil content requirement (0-5 mg/m³)
• Impact absorption for high-speed piston movement (up to 2 m/s)

• Must be installed vertically with proper alignment to load axis
• Requires clean air pipeline with ≤50 μm particulate filtration
• Weekly lubrication with AVENTICS certified special oil
• Regular seal inspection using soapy water pressure test

• Maximum opening/closing torque: ≤240 N*m
• Impact cylinder kinetic energy output: ≤1.5 J
• Recommended operating pressure: 6.3 bar for frequent reciprocation
• Mechanical locking device recommended for power-off situations

Ideal for automated production lines, material handling equipment, filling machinery, automobile manufacturing, and logistics sorting systems.
