3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve

3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve
3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve 3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve

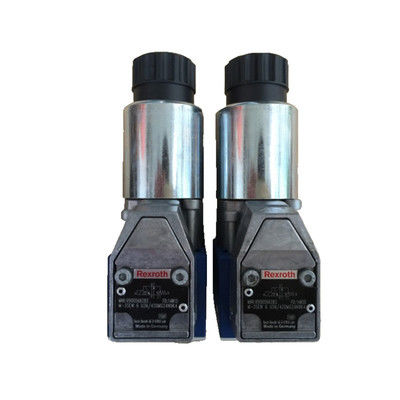

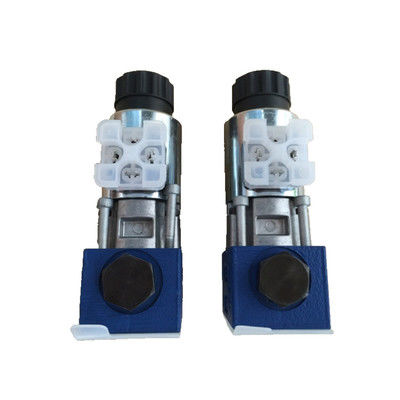

Large Image :  3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: M-3SEW6U36 420MG24N9K4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve

Description
Brand: Rexroth Model: M-3SEW6U36 420MG24N9K4
Spool Symbol: Symbol U Max. Pressure: 420
Productgroup ID: 9,10,11,12,13,14 Number Of Ports: 3
Type Of Actuation: With Solenoid Actuation Size: 6
Highlight:

3 ports Mechanical Hydraulic Pump

,

M-3SEW6U36

,

420MG24N9K4

3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve
Product Specifications
Attribute Value
Brand Rexroth
Model M-3SEW6U36 420MG24N9K4
Spool symbol Symbol U
Max. pressure 420
Productgroup ID 9,10,11,12,13,14
Number of ports 3
Type of actuation with solenoid actuation
Size 6
Product Overview

The Bosch Rexroth M-3SEW6U3X/420MG24N9K4 (R900566283) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction in accordance with hydraulic symbol U.

Key Features
  • Direct-actuated seat valve with concealed manual override and auxiliary actuation
  • Maximum operating pressure: 350 bar
  • Maximum flow rate: 60 l/min
  • Subplate mounting design conforming to NFPA T3.5.1 R2 D03 (CETOP R35H) and ISO 4401 porting patterns
  • Electrical connection includes Connector pole PE according to EN standards
  • Supply voltage: 24 VDC
  • Compatible with hydraulic fluids: HL, HLP, HLPD, HVLP, HVLPD, and HFC
  • NBR (nitrile butadiene rubber) seals for oil and hydraulic fluid resistance
  • Solenoid coil rotatable by 90° and changeable without opening pressure-tight chamber
  • Optional inductive position switches and proximity sensors available
Technical Details
Type of connection Subplate mounting
Connection diagram NFPA NFPA T3.5.1 R2-2002 D03
Size_CETOP D03
Connection diagram ISO 4401-03-02-0-05
Number of switching positions 2
Weight 1.48
3 Ports Mechanical Hydraulic Pump M-3SEW6U36 420MG24N9K4 Rexroth Direction Valve 0
