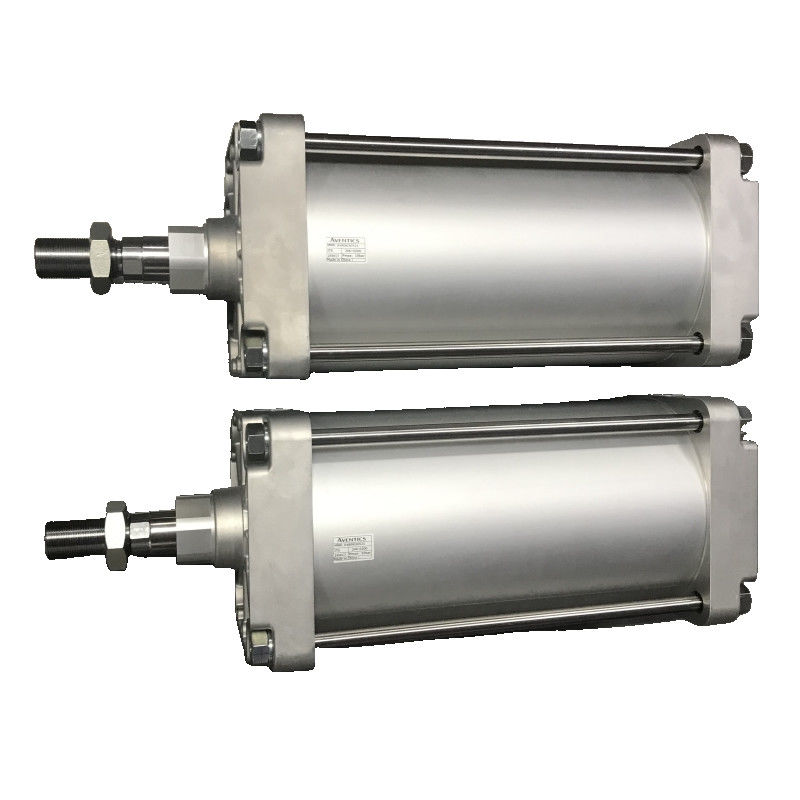

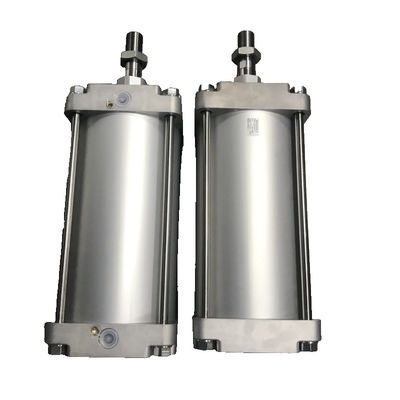

AVENTICS R480630521 Cylinder Stainless Steel High Reliability

AVENTICS R480630521 Cylinder Stainless Steel High Reliability
AVENTICS R480630521 Cylinder Stainless Steel High Reliability AVENTICS R480630521 Cylinder Stainless Steel High Reliability

Large Image :  AVENTICS R480630521 Cylinder Stainless Steel High Reliability

Product Details:
Place of Origin: Germany
Brand Name: AVENTICS
Certification: cc
Model Number: R480630521
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/10-100000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

AVENTICS R480630521 Cylinder Stainless Steel High Reliability

Description
Size: Various Sizes Available Supply Voltage: DC24v
Port Size: 1/2 Inch NPT Maximum Pressure: 5000 PSI
Operating Temperature: 0-200 Degrees Fahrenheit Piston Rod End: Internal Thread
Structure: Rotary Cylinder Bore Size: 2 Inches
Highlight:

AVENTICS R480630521 Cylinder

,

Safety R480630521 Cylinder

AVENTICS R480630521 Cylinder Stainless Steel High Reliability Safety New
Product Specifications
Attribute Value
Size Various sizes available
Supply Voltage DC24v
Port Size 1/2 inch NPT
Maximum Pressure 5000 PSI
Operating Temperature 0-200 degrees Fahrenheit
Piston Rod End Internal thread
Structure Rotary Cylinder
Bore Size 2 inches
Key Features & Benefits
  • Simple and lightweight structure - Easy to install and maintain with air as the medium for safe operation
  • Cost-effective solution - Uses inexhaustible air medium with simple exhaust treatment and no environmental pollution
  • Precise adjustability - Output force and working speed are easily controlled with action speeds typically under 1 m/s
  • Exceptional durability - Service life exceeds 30 million cycles, with high-quality valves surpassing 200 million cycles
  • Safety focused - Fireproof, explosion-proof, and moisture-resistant design suitable for high-temperature applications
Installation & Technical Details
  • Installation Method: Bolt-on or weld-on
  • Model: R480630521
  • Assembly Position: Any orientation
  • Mode Of Operation: Double-acting
  • Variants: Piston rod at one end
  • Cushion Type: Adjustable
  • Core Tube Material: Stainless steel
AVENTICS R480630521 Cylinder Stainless Steel High Reliability 0
Operation & Maintenance Guidelines
Important Usage Considerations:
  • Keep magnetic switch wiring short (under 5 meters) or use contact protection boxes
  • Use specialized cylinders in strong magnetic fields or dusty/wet environments
  • Apply only axial forces to piston rod - avoid radial forces to prevent premature wear
  • Implement safety protection for cylinder movement areas
  • Add external buffers for high-speed, heavy-load applications
  • Support mid-span for long-stroke cylinders to prevent bending
  • Maintain consistent lubrication if oil is introduced (pre-greased models typically don't require lubrication)
Frequently Asked Questions
Q: Do you accept small orders?
A: Yes, we accommodate small orders to provide convenience for our clients. Please contact us for details.
Q: Can you ship to my country?
A: Absolutely. We can arrange shipping directly or work with your preferred forwarder.
Q: What payment methods do you accept?
A: We accept T/T, LC at sight, and 100% full payment options.
Q: What is your production lead time?
A: Standard lead time is approximately 15 days for MOQ quantities, varying by product and order size.
Q: How quickly can I receive a quotation?
A: We typically respond within 24 hours. For urgent requests, please indicate in your inquiry or contact us directly.
