Rexroth Cartridge Valve LC100B20E60 With Three Pressurized Areas

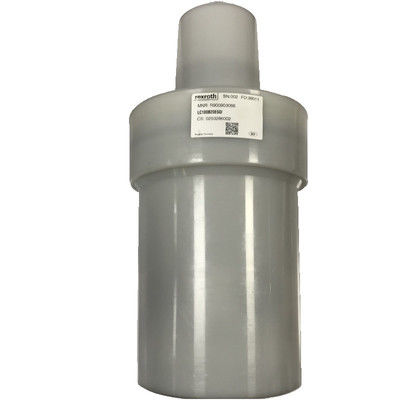

The Bosch Rexroth LC100B20E6X/ (R900903066) is a high-performance industrial hydraulic valve designed for reliable, unidirectional flow switching in a compact block design. This spool type BE valve is hydraulically actuated and falls under the product group ID for cartridge valves.

This versatile valve can be used for pressure, directional, and throttle functions or combinations thereof, featuring an ISO standardized connection diagram for straightforward integration into control blocks with receiving holes. Its modular design includes a control cover that houses control bores and may include additional functions such as stroke limitation or hydraulically controlled directional seat valves.

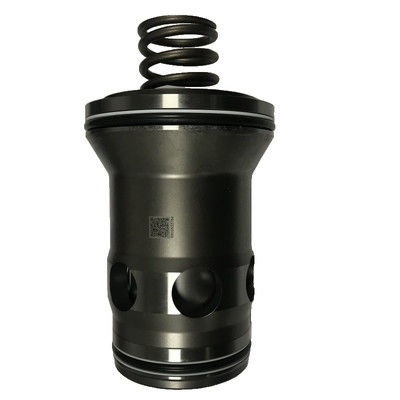

The installation kit comprises a bushing, ring (up to NG), valve poppet (with or without damping nose), and closing spring. This model operates based on pressure-dependent functionality with three critical pressurized areas (A1, A2, A3) creating different area ratios of A1:A2 which are either 2:1 or 1:1.

Key technical specifications:

• Spool symbol: B20E
• Max. pressure: 420 bar
• Product group ID: 9,10,11,12,13,14
• Type of actuation: Hydraulic actuation
• Size: 100
• Max. flow: 13000 liters per minute
