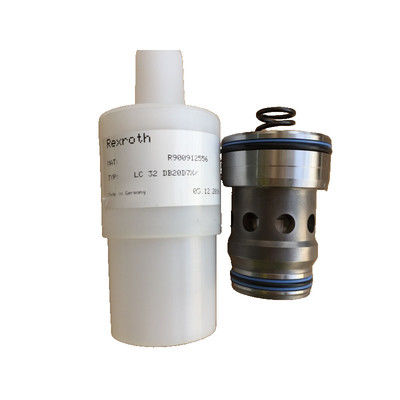

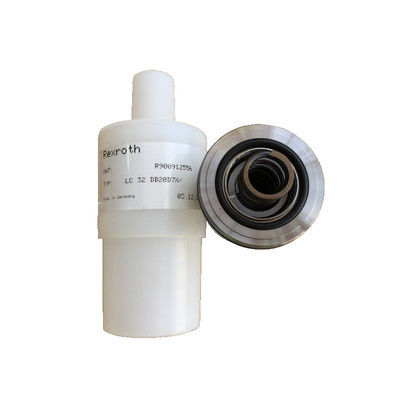

Rexroth Cartridge Valve LC32DB20D7X With Manual Or Electric Proportional Adjustment

The Bosch Rexroth LC32DB20D7X is a high-performance industrial hydraulic valve designed for reliable pressure relief and reduction functions. This pilot-operated seat valve features a spool symbol for A B configurations and handles maximum pressures with precision to maintain system safety.

As a cartridge valve, it fits standardized receiving holes according to DIN ISO specifications and includes a control cover. The pilot control valve offers manual or electric proportional adjustment for pressure control, mounted in compliance with DIN standards.

Key technical specifications:

• Spool symbol: A → B
• Maximum pressure: 420 bar
• Product group ID: 9,10,11,12,13,14
• Number of ports: 2
• Actuation type: Hydraulic
• Size: 32
• Maximum flow: 600 l/min

The valve provides multiple pressure functions through cartridge valve and control cover combinations. Its pressure relief function operates as a seat valve without area difference at port B, while pressure reducing functions work with control covers featuring pressure-reducing pilot control valves.

Equipped with NBR seals compatible with various hydraulic fluids, this robust valve maintains precise control in complex industrial hydraulic systems while remaining easy to install.
