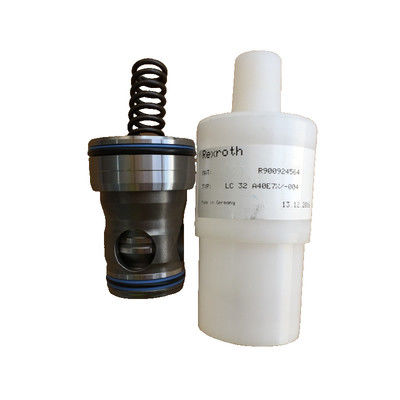

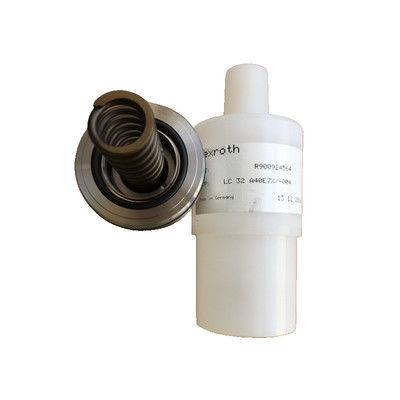

Rexroth Cartridge Valve LC32A40E7X -004 For Pressure Directional And Throttle Functions

The Bosch Rexroth LC32A40E7X/-004 (R900924564) is a high-performance way cartridge valve designed for seamless integration into compact block systems. This valve enables versatile hydraulic control through its compatibility with pilot control valves, allowing it to perform pressure, directional, and throttle functions or combinations thereof.

Its adaptability makes it a cost-effective solution for managing the flow in different actuator pathways. The LC32A40E7X/-004 consists of a control cover that houses control bores and may include additional features such as stroke limitation, hydraulically controlled directional seat valves, or shuttle valves depending on the required function.

This particular model operates based on pressure-dependent functionality with three critical pressurized areas (A1, A2, A3) contributing to its operation. The valve's spool position is determined by the resultant force of opening and closing forces acting on these areas alongside the spring mechanism.

• Port Type: Screw-in
• Mounting Type: Subplate mounting
• Control Type: Electro-hydraulic
• Seals: NBR
• Valve Type: Cartridge Valve
• Seal Type: Nitrile
• Spool Type: Direct operated
• Product Type: Hydraulic Valve
