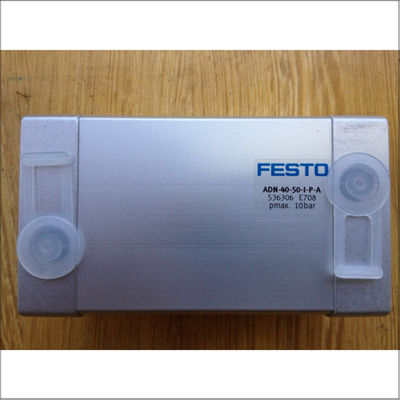

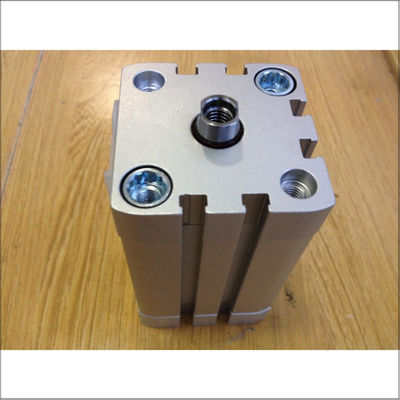

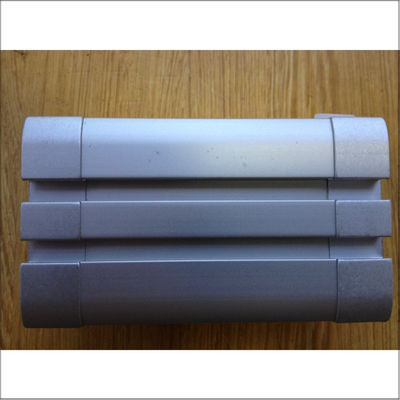

Festo ADN-40-50-I-P-A Durable and High-Performance Oil Cylinder with 40mm Piston and 50mm Stroke

Product Overview

• Model: ADN-40-50-I-P-A
• Type: Compact pneumatic cylinder
• Brand: Festo

Technical Specifications

• Operation Mode: Double-acting
• Piston Diameter: 40 mm
• Stroke: 50 mm
• Theoretical Force at 6 bar:
  • Advancing: 754 N
  • Retracting: 686 N
• Cushioning: Integrated elastic cushioning rings/pads at both ends
• Piston Rod Thread: M8
• Mounting Options:
  • Through-hole
  • Internal thread
• Pneumatic Connection: G1/8
• Working Pressure: 0.6 bar to 10 bar
• Working Medium: Compressed air conforming to ISO 8573-1:2010 [7:4:4]
• Ambient Temperature: -20°C to 80°C
• Product Weight: 495 g
• Compliance: ISO 21287

Applications

Features

• Compact Design: The ADN series is designed to be space-saving, making it easy to integrate into tight spaces.
• Effective Cushioning: The integrated elastic cushioning rings/pads at both ends effectively absorb residual energy, reducing wear and tear.
• Long Service Life: The cylinder is designed with low friction and high durability, ensuring a long service life.
• No Adjustment Needed: The cushioning system requires no adjustment, saving time and effort during installation.

Accessories

• Pneumatic Tubing
• Functional Connectors
• Threaded Fittings
• Proximity Sensors
