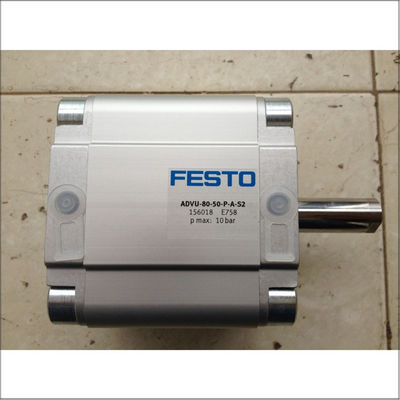

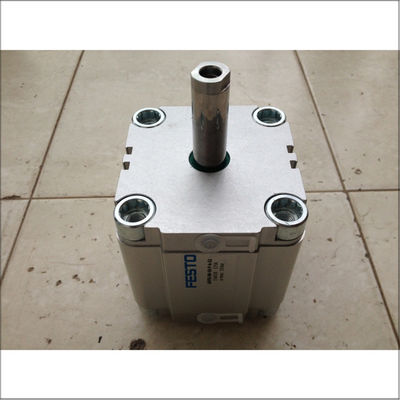

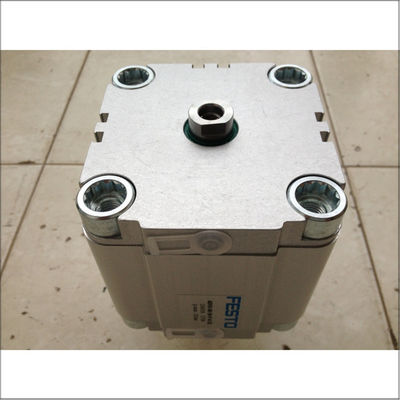

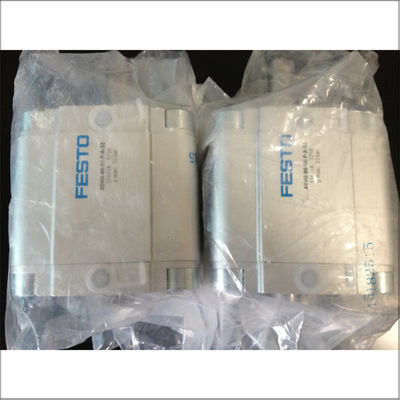

Festo ADVU-80-50-P-S2 Oil Cylinder 80mm Piston Diameter 50mm Stroke Double-acting M5 Pneumatic Connection Anodized Aluminum Material

Product Overview

• Model: ADVU-80-50-P-S2
• Brand: Festo

Technical Specifications

• Piston Diameter: 80 mm
• Stroke: 50 mm
• Operating Mode: Double-acting
• Pneumatic Connection: M5
• Piston Rod End: Through piston rod (S2)
• Operating Pressure Range: 0.08 MPa to 1 MPa (1 bar to 10 bar)
• Operating Temperature Range: -20°C to 80°C
• Weight: 5.33 lbs (approx. 2.42 kg)
• Materials:
  • Cylinder Housing: Extruded aluminum alloy
  • Piston Rod: High-alloy stainless steel
  • Seals: NBR, TPE-U (PU)

Features

• Compact Design: Suitable for applications with limited space.
• Integrated Magnet: Ready for position sensing with proximity switches.
• Versatile Mounting: Can be installed in any position.
• Smooth Operation: Elastic cushioning rings/plates at both ends provide smooth and quiet operation.
