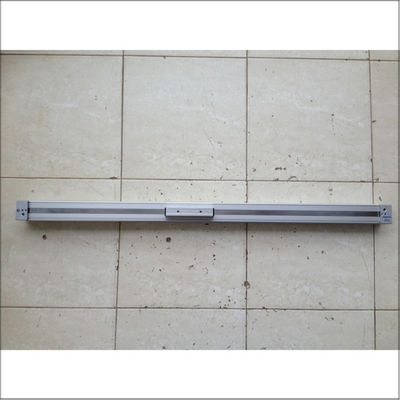

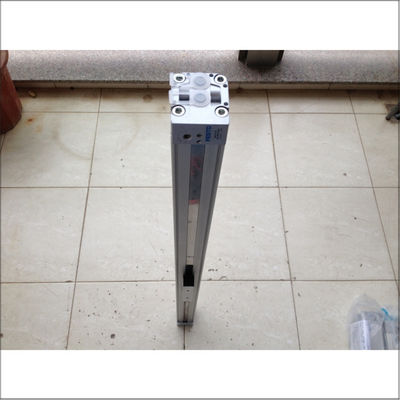

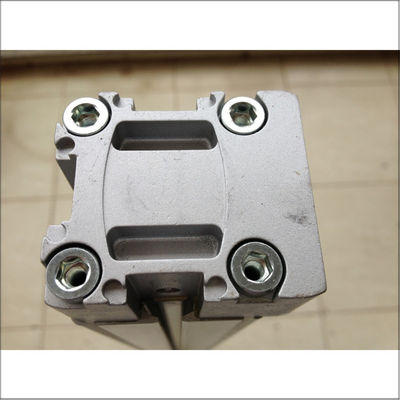

Lightweight Festo DGC-K-25-635-PPV-A-GK Oil Cylinder With High Torque And Low Weight For Smooth And Precise Industrial Operations

Product Overview

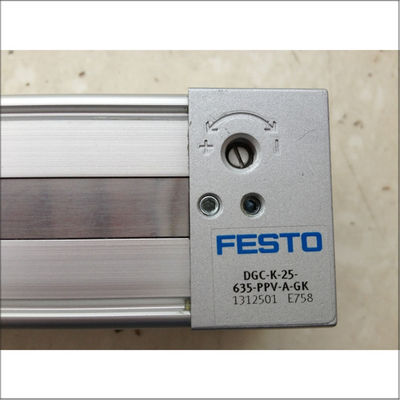

• Model: DGC-K-25-635-PPV-A-GK
• Brand: Festo

Technical Specifications

• Piston Diameter: 25 mm
• Stroke: 635 mm
• Operating Mode: Double-acting
• Mounting Type: Profile mounting
• Operating Pressure Range: 1.5 bar to 8 bar (0.15 MPa to 0.8 MPa)
• Operating Temperature Range: -10°C to 60°C
• Pneumatic Connection: G1/8
• Materials:
  • Cylinder Housing: Extruded aluminum alloy
  • Piston Rod: High-alloy stainless steel
  • Seals: NBR, TPE-U (PU)
• Theoretical Force at 6 bar:
  • Advancing Stroke: 368 N
  • Retracting Stroke: 368 N
• Cushioning: Elastic cushioning rings/plates at both ends
• Weight: Approximately 3.5 kg

Features

• Compact Design: Suitable for applications with limited space.
• Integrated Magnet: Ready for position sensing with proximity switches.
• Versatile Mounting: Can be installed in any position.
• Smooth Operation: Elastic cushioning rings/plates at both ends provide smooth and quiet operation.
• High Durability: Designed for long-term use in industrial environments.
