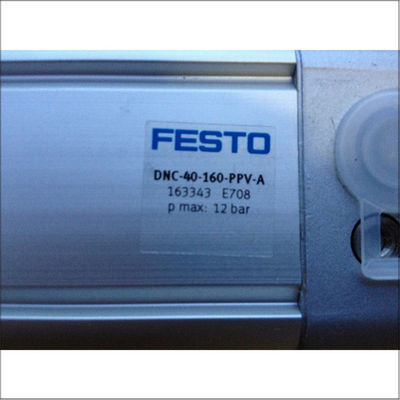

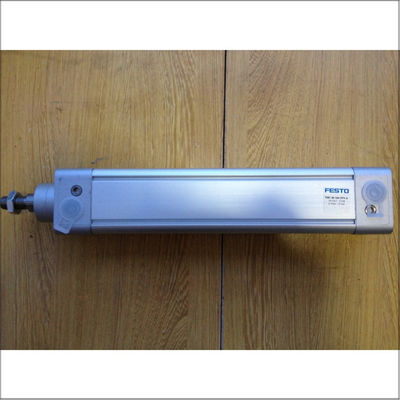

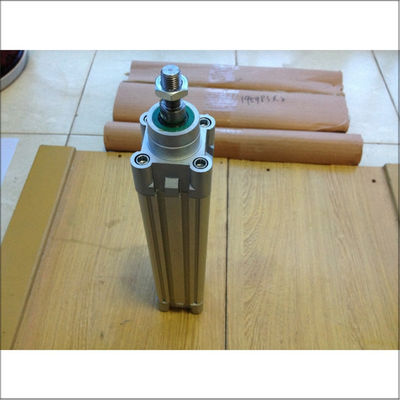

26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial

26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial
26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial 26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial 26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial

Large Image :  26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial

Product Details:
Place of Origin: Germany
Brand Name: Festo
Certification: cc
Model Number: DNC-40-160-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial

Description
Type: Hydraulic Structure: Rotary Cylinder
Stroke: 100 Mm Position Detection: For Proximity Sensor
Piston Rod Diameter: 1-6 Inches Product Function: Regulate Flow Rate
Highlight:

Industrial Oil Cylinder

,

DNC-40-160-PPV-A PPV-A Oil Cylinder

FESTO DNC-40-160-PPV-A

Product Overview

  • Model: DNC-40-160-PPV-A
  • Brand: Festo

Technical Specifications

  • Piston Diameter: 40 mm
  • Stroke: 160 mm
  • Operating Mode: Double-acting
  • Piston Rod Thread: M12x1.25
  • Cushioning: Pneumatic cushioning, adjustable at both ends
  • Operating Pressure Range: 0.6 to 12 bar
  • Theoretical Force at 6 bar:
    • Advancing Stroke: 754 N
    • Retracting Stroke: 633 N
  • Mounting Position: Optional (any position)
  • Compliance: ISO 15552
  • Weight: Approximately 0.962 kg
  • Materials:
    • Cylinder Barrel: Extruded aluminum alloy
    • Piston Rod: Continuous piston rod
  • Pneumatic Connection: G1/8

Features

  • Standardized Design: Conforms to ISO 15552, ensuring compatibility with a wide range of applications.
  • Smooth Operation: Equipped with adjustable pneumatic cushioning at both ends for smooth and quiet operation.
  • Versatile Mounting: Suitable for various mounting positions.
  • Integrated Magnet: Ready for position sensing with proximity switches.

Applications

This cylinder is widely used in industrial automation applications, including assembly lines, material handling, and robotic systems, where precise linear motion and reliable performance are required.
Technical Specifications
Attribute Value
Model DNC-40-160-PPV-A
Displacement 10 cm³ per revolution
Maximum Operating Pressure 250 bar
Rotation Clockwise
Shaft Configuration Conical 1:5
Flange Type Rectangular flange with a diameter of 36.47 mm (M8)
Dimensions 84.1 mm x 87 mm x 112 mm
Weight 3.1 kg
Maximum Speed 4000 RPM
Working Pressure 21Mpa
Working Viscosity 16 ~ 25 mm²/s
Swept Volume 19/34ml/r
Packing Wood Package
Ports SAE, BSP, NPT

26. DNC-40-160-PPV-A Oil Cylinder For High Performance Industrial 0
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you send products to my country?
Yes, we can ship internationally. We can arrange shipping if you don't have your own forwarder.
What are your payment terms?
We accept T/T, LC at sight, or 100% full payment.
How long is your production lead time?
Lead time depends on product and order quantity, typically 15 days for MOQ quantities.
When can I get the quotation?
We typically provide quotes within 24 hours. Urgent requests can be prioritized.
After Warranty Service: Video technical support available
Quality: Excellent
Fuel: Hydraulic Oil
Material: Standard
Structure: Piston cylinder
