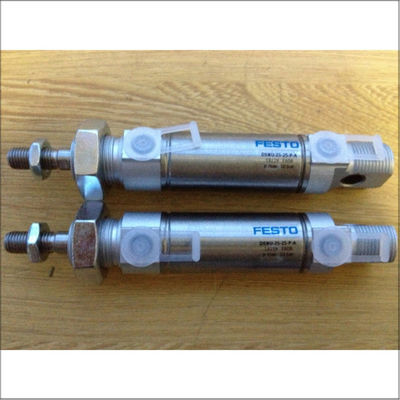

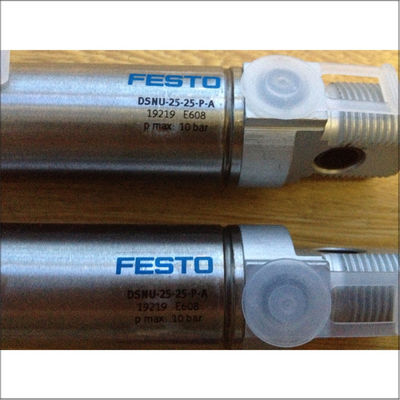

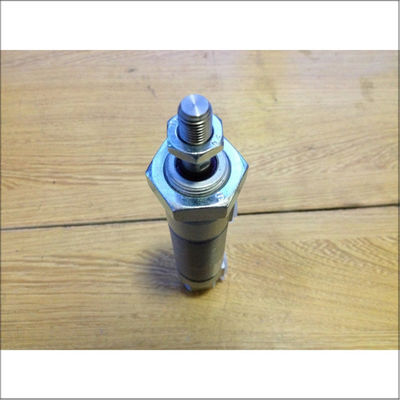

FESTO DSNU-25-25-P-A Oil Cylinder 25mm Piston Diameter 25mm Stroke For Double-Acting Operation With Elastic Cushioning

Product Overview

• Model: DSNU-25-25-P-A
• Brand: Festo

Technical Specifications

• Piston Diameter: 25 mm
• Stroke: 25 mm
• Operating Mode: Double-acting
• Piston Rod Thread: M10x1.25
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting Position: Optional (any position)
• Operating Pressure Range: 0.1 MPa to 1 MPa (1 bar to 10 bar)
• Operating Temperature Range: -20°C to 80°C
• Theoretical Force at 6 bar:
  • Advancing Stroke: 294.5 N
  • Retracting Stroke: 247.4 N
• Weight:
  • Basic weight at 0 mm stroke: 238 g
  • Additional mass per 10 mm stroke: 6 g
• Pneumatic Connection: G1/8
• Materials:
  • Cylinder Housing: Extruded aluminum alloy, anodized
  • Piston Rod: High-alloy stainless steel
  • Seals: NBR, TPE-U (PU)
• Compliance: ISO 6432, CETOP RP 52 P

Features

• Compact Design: Suitable for applications with limited space.
• Smooth Operation: Equipped with elastic cushioning rings/plates at both ends for smooth and quiet operation.
• Versatile Mounting: Can be installed in any position.
• Integrated Magnet: Ready for position sensing with proximity switches.
• Standard Compliance: Conforms to ISO 6432 and CETOP RP 52 P standards.
