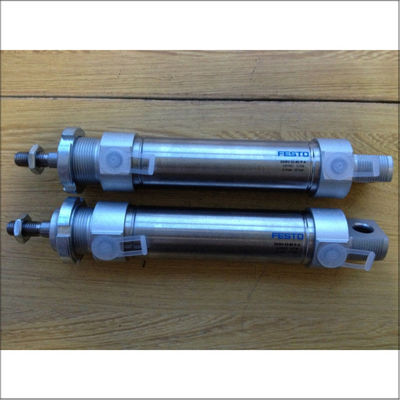

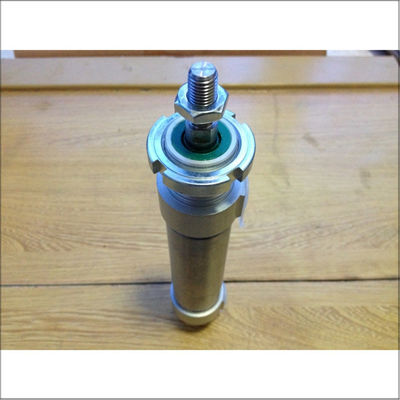

Festo Oil Cylinder DSNU-32-80-P-A With 32mm Piston Diameter And 80mm Stroke For Industrial

Product Overview

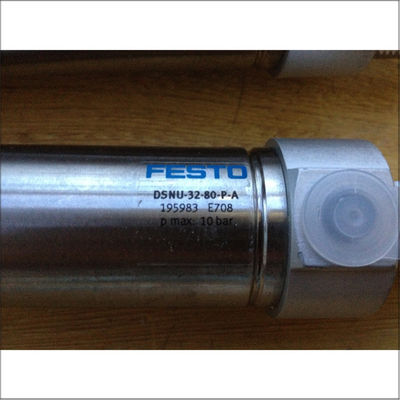

• Model: DSNU-32-80-P-A
• Brand: Festo

Technical Specifications

• Piston Diameter: 32 mm
• Stroke: 80 mm
• Piston Rod Thread: M10x1.25
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting Position: Any position
• Operating Pressure Range: 0.1 MPa to 1 MPa (1 bar to 10 bar)
• Operating Temperature Range: -20°C to 80°C
• Theoretical Force at 6 bar:
  • Advancing Stroke: 482.5 N
  • Retracting Stroke: 415 N
• Weight:
  • Basic weight at 0 mm stroke: 493 g
• Pneumatic Connection: G1/8
• Materials:
  • Cylinder Housing: High-alloy stainless steel
  • Piston Rod: High-alloy steel
  • Seals: NBR, TPE-U (PU)
• Compliance: ISO 6432

Features

• Standardized Design: Conforms to ISO 6432, ensuring compatibility with a wide range of applications.
• Smooth Operation: Equipped with elastic cushioning rings/plates at both ends for smooth and quiet operation.
• Versatile Mounting: Can be installed in any position.
• Integrated Magnet: Ready for position sensing with proximity switches.
