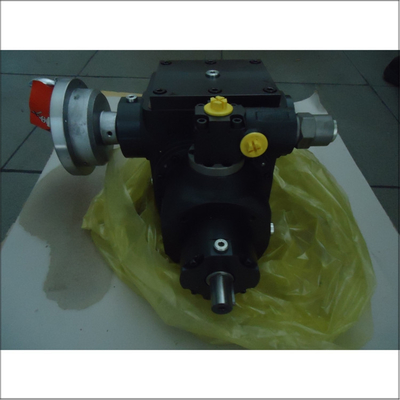

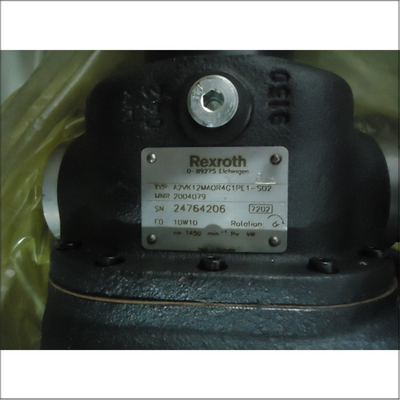

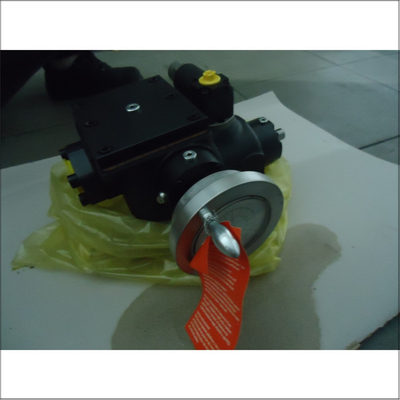

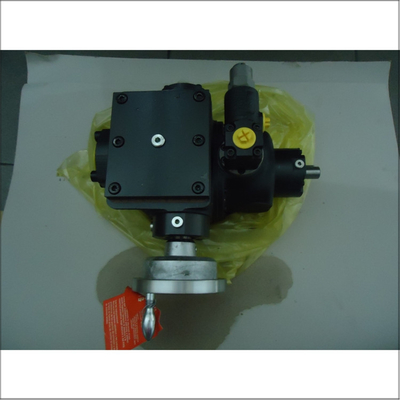

Bosch Rexroth A2VK12MAOR4GPE1-SO2 The Ultimate Mechanical Hydraulic Pump for Industrial Applications

Technical Specifications

• Model: A2VK12MAOR4GPE1-SO2
• Brand: Bosch Rexroth
• Type: Variable displacement axial piston pump
• Displacement Range: 12 cm³ (variable)
• Nominal Pressure: Up to 315 bar
• Maximum Pressure: 350 bar
• Speed Range: Up to 3000 RPM
• Flow Rate: Variable, depending on displacement and speed
• Mounting Flange: ISO 3019-2 4-hole
• Direction of Rotation: Clockwise (R) or Counterclockwise (L)
• Body Material: Cast Iron
• Seal Type: Viton (V) or NBR (P)
• Fluid Compatibility: Mineral oil
• Fluid Cleanliness: 19/17/14 micron
• Working Temperature Range: -25°C to +90°C (-13°F to +195°F)
• Weight: Approximately 23 kg

Features

• Variable Displacement: Allows for adjustable flow rates to meet specific system requirements.
• High Pressure Capability: Suitable for high-pressure applications up to 350 bar.
• Robust Design: Cast iron body ensures durability and reliability.
• Versatile Mounting: ISO 3019-2 4-hole flange for easy integration into various hydraulic systems.
• Temperature Resistance: Operates reliably within a wide temperature range.
• High-Speed Operation: Designed for speeds up to 3000 RPM.
• Long Service Life: Designed with long-life bearings suitable for continuous operation.

Applications

• Machine Tool
• Marine/Offshore Systems
• Presses
• Primary Metal Processing
• Plastics, Pulp & Paper
• Test Equipment
