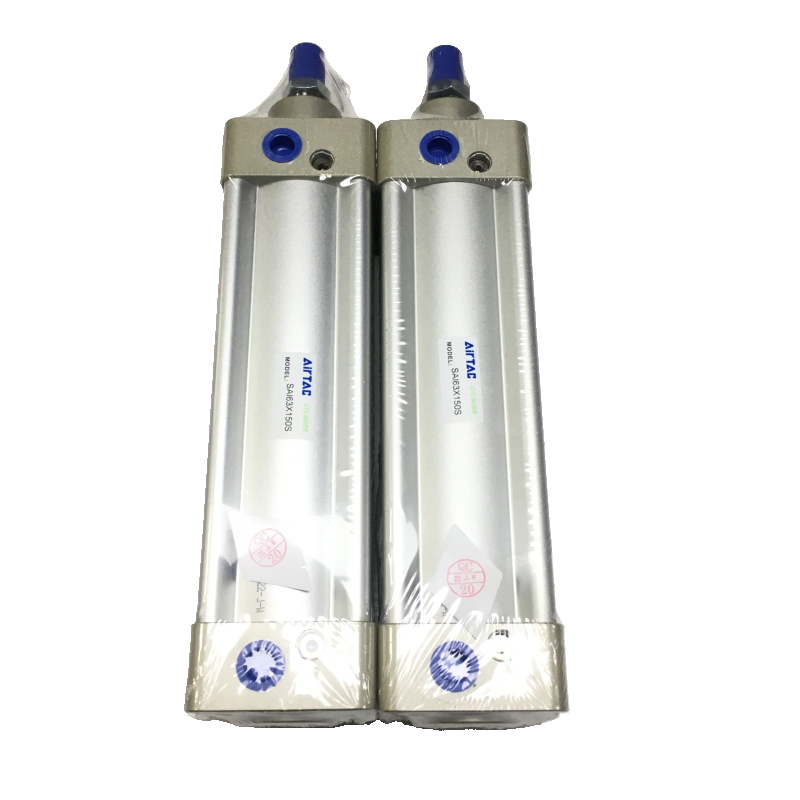

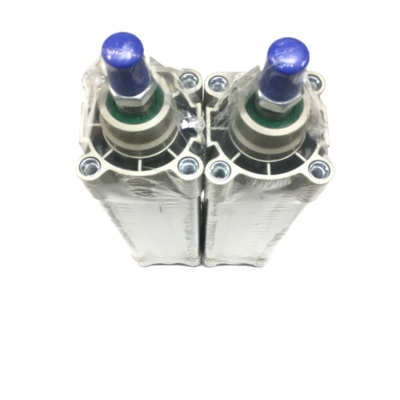

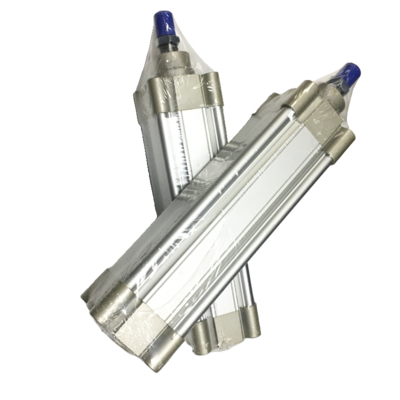

Product Description:
Airtac cylinder has the following advantages and features:
Advantages and features
Excellent sealing performance
Adopts a special-shaped bidirectional sealing structure, compact size and oil storage function, good wear resistance and durability, and the piston rod coating can still work normally when the wear amount reaches 0.1mm.
The sealing performance is stable in high temperature environment and can work normally at a high temperature of 150℃.
Space saving
Designed as a compact structure, it saves 50% of space compared with the ISO15552 standard cylinder with the same cylinder diameter.
Smooth buffer adjustment
Built-in adjustable buffer device, stable operation and noise below 65dB, suitable for high-frequency working conditions.
Easy to install
The cylinder body has magnetic induction switch slots on three sides for easy installation of induction switches; a variety of specifications and installation accessories are available.
Precautions for use
Installation requirements
During installation, ensure that the non-rotation accuracy of the fixed plate is controlled within the allowable range to avoid external force damaging the moving parts.
Install the jig in the retracted state to avoid damaging the moving parts of the cylinder.
Maintenance
Regularly check the wear of the piston rod coating. If the wear exceeds 0.1mm, it needs to be repaired in time.
Avoid long-term use in dusty environments or high temperatures exceeding 70℃.
| Warranty |
1 year limited warranty |
| Port Size |
3/8 inch NPT |
| Stroke Length |
Up to 10 feet |
| Rod Diameter |
1 inch |
| Supply Voltage |
DC24v |
| Working Temperature |
0-100°C |
| Size |
Various sizes available |
| Operating Temperature |
Up to 250°F |
| Mounting Type |
Tie Rod |
| Piston Rod Thread |
M6 |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
