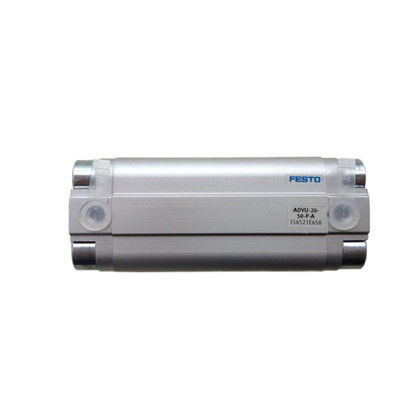

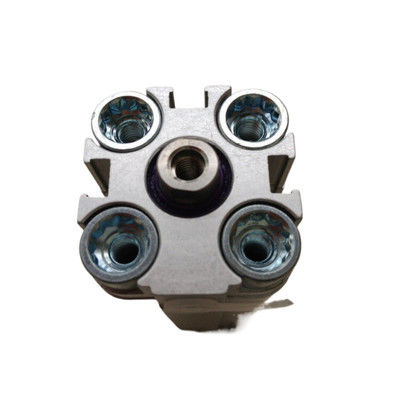

Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics

Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics
Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics

Large Image :  Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics

Product Details:
Place of Origin: Germany
Brand Name: Festo
Certification: cc
Model Number: ADVU-20-50-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics

Description
Brand: Festo Model: ADVU-20-50-P-A
Stroke: 50 Mm Piston Diameter: 20 Mm
Cushioning: Elastic Cushioning Rings/plates At Both Ends Mounting Position: Optional
Mode Of Operation: Double-acting Piston-rod End: Female Thread
Highlight:

Compact festo advu

,

Robotics festo advu Automation Control

,

ADVU-20-50-P-A

Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics
Product Specifications
Attribute Value
Brand Festo
Model ADVU-20-50-P-A
Stroke 50 mm
Piston diameter 20 mm
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Mode of operation Double-acting
Piston-rod end Female thread
Product Description

The Festo Compact Cylinder ADVU-20-50-P-A is designed for precision robotics and automation control applications. This 3- or 4-position cylinder consists of two separate cylinders with piston rods that advance in opposite directions, enabling up to four positions depending on actuation and stroke configuration.

The cylinder features precise stop positioning and includes proximity switches for position detection. With a corrosion resistance class CRC 2 (Festo standard FN 940070), it's suitable for moderate corrosion stress environments, including indoor applications where condensation may occur.

Technical Details
  • Position detection via proximity switch
  • Piston rod at one end configuration
  • Operating pressure range: 0.1 MPa to 1 MPa
  • Impact energy in end positions: 0.14 J
  • Additional weight per 10 mm stroke: 23 g
  • Collar screws material: Galvanised steel
  • Cover material: Wrought aluminium alloy
Applications

This versatile cylinder is ideal for various industrial applications including:

  • Printing (tension control)
  • Semiconductor manufacturing (spot welders, chip grinding)
  • Automation control systems
  • Robotics applications
Compact Festo Advu Cylinder Automation Control ADVU-20-50-P-A For Robotics 0
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you ship to my country?
Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics.
What are your payment terms?
We accept T/T, LC at sight, or 100% full payment.
What is your production lead time?
Lead time depends on product and order quantity. Typically 15 days for MOQ quantities.
How quickly can I get a quotation?
We typically respond within 24 hours. For urgent requests, please indicate in your inquiry or contact us directly.
