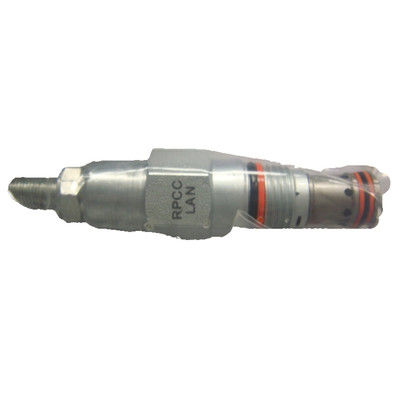

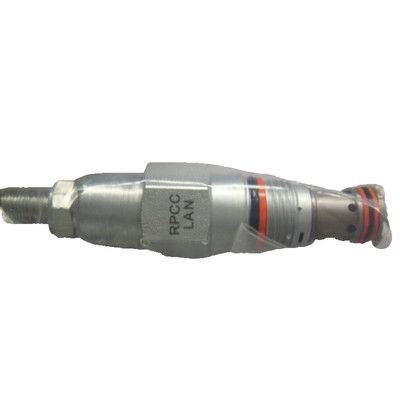

SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW

SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW
SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW

Large Image :  SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: RPCC-LAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW

Description
Brand: SUN Model: RPCC-LAN
Cavity: T-162A Series: 0
Capacity: 12 Gpm Maximum Operating Pressure: 5000 Psi
Factory Pressure Settings Established At: 4 Gpm Maximum Valve Leakage At 110 SUS: 2 In³/min.@1000 Psi
Highlight:

Mechanical Hydraulic Valve

,

Hydraulic Relief Valve

,

Hydraulic Control Valves

SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW
Product Specifications
Attribute Value
Brand SUN
Model RPCC-LAN
Cavity T-162A
Series 0
Capacity 12 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Maximum Valve Leakage at 110 SUS 2 in³/min.@1000 psi
Product Description

Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure.

  • Accurate pressure regulation with low pressure rise vs. flow
  • Smooth and quiet operation with moderate response speed
  • Physically and functionally interchangeable with other 2-port relief cartridges
  • Accepts maximum pressure at port 2; suitable for cross port relief circuits
  • Minimum setting of 75 psi (5 bar) for all spring ranges
  • Main stage orifice protected against contamination
  • Sun floating style construction minimizes internal parts binding
Technical Details
Model Weight 0.22 lb.
Locknut Torque 80 - 90 lbf in.
Locknut Hex Size 1/2 in.
Adjustment Screw Internal Hex Size 5/32 in.
Valve Installation Torque 20 - 25 lbf ft
Valve Hex Size 3/4 in.
Adjustment - No. of CW Turns from Min. to Max. setting 5
Response Time - Typical 10 ms
SUN OVERFLOW VALVE RPCC-LAN FOR LOW PRESSURE RISE AND SMOOTH FLOW 0
