Rexroth Oil Cylinder CDT3ME6/80/56/20F11/B11HEUVWW Blue High Safety Precise Control Optimized Design

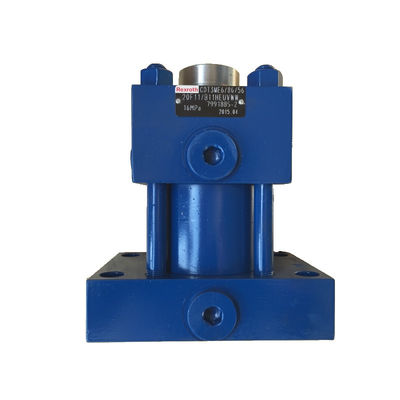

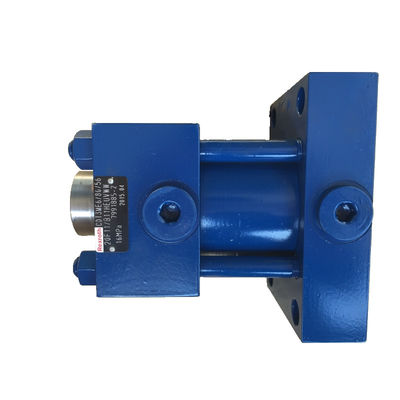

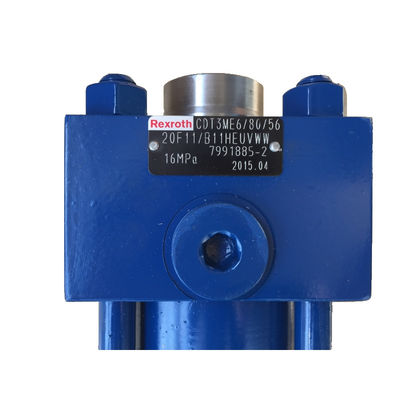

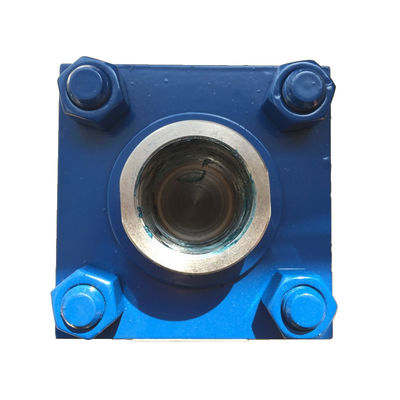

The Rexroth CDT3ME6/80/56/20F11/B11HEUVWW is a rod-type hydraulic cylinder manufactured by Bosch Rexroth in Germany. This hydraulic cylinder belongs to the CDT3 series, featuring high nominal pressure and multiple mounting options. Its mounting dimensions comply with ISO 6020-2, DIN 24554, and NF/ISO 6020-2 standards. The piston diameter is 80 mm, the piston rod diameter is 56 mm, and the stroke length is 20 mm. This hydraulic cylinder is designed to withstand a maximum working pressure of 210 bar under static load conditions.

• Industrial Manufacturing: Used in machine tools, injection molding machines, die-casting machines, and other equipment to achieve precise mechanical motion control.
• Aerospace: Used in critical components such as aircraft landing gear retraction and wing adjustment.
• Construction Machinery: Used to drive the movement of components such as mechanical arms and buckets in excavators and loaders.
• Metallurgy Industry: Used in equipment such as rolling mills and continuous casting machines to control the lifting and pressure regulation of rollers.
• Paper Industry: Used in the pressing and drying stages of paper machines to control paper tension and thickness.
• Plastic Machinery: Used to control the opening and closing of molds and the molding pressure of plastics.
• Blow Molding Machine Equipment: Used to control the opening and closing of blow molding molds and blow molding pressure.
• Paper Mill Hydraulic Components: Used to control the movement and pressure of various equipment in paper mill hydraulic systems.
• Oilfield Equipment: Used to control the lifting and pressure regulation of drill bits in oilfield drilling and oil extraction equipment.

• High Reliability: Advanced manufacturing processes and high-quality materials ensure durability under harsh conditions.
• Precise Control: Multiple control options and integrated guide sleeve reduce friction and improve accuracy.
• Flexible Installation: Piping connection positions can be freely selected with various installation types available.
• Easy Maintenance: Integrated guide sleeve and compact structure facilitate quick maintenance.
• High Adaptability: Compatible with various hydraulic oils with optimal viscosity range of 20 to 100 mm²/s.
• High Safety: Equipped with patented safety exhaust valve and complies with international safety standards.
• High Performance: Features high nominal pressure (160 bar) and maximum operating pressure (210 bar).
• Optimized Design: Compact design saves space and enhances equipment performance.
• Brand Advantage: Bosch Rexroth is a globally renowned manufacturer known for quality and reliability.
